LiopStar-HQ        high repetition rate dye laser

·         low ASE < 0,05%

·         repetition rates up to 100 kHz

·         highly efficient polarization matched laser resonator

·         flow optimized oscilator and amplifier cells

·         amplifier cell in Brewster angle

·         state-of-the-art integrated electronics and user friendly LabView software

·         USB port

·         remote control via TCP / IP protocol

·         smallest footprint

frequency conversion units


·         internal open loop frequency doubling with look-up-table

·         temperature stabilized BBO crystals

·         high scan speed, up to 10 nm/min

·         usable for repetition rates from < 1 Hz up to 100 kHz

Options



·         3rd amplifier cell for high power  operation

·         temperature and flow monitoring



linewidth specifications                                                          LIOPSTAR-HQ



              grating

     tuning range

       linewidth

LIOPSTAR-HQ

1800 l/mm, 90 mm

  430 nm – 900 nm

< 0.07  cm-1 @ 570 nm

LIOPSTAR-HQ

2400 l/mm, 90 mm

  430 nm – 750 nm

< 0.05 cm-1  @ 570 nm



specifications                                                                            LIOPSTAR-HQ

conversion efficiency: pumped by

Nd:YAG 532 nm, 10 kHz, 10ns, 40W

Nd:YAG 355 nm, 10 kHz, 10ns, 15W

 25% @ 564 nm, 10 W                           Rhodamine 6G

 20% @ 640 nm, 8 W                          DCM

 13% @ 440 nm, 2 W                              Coumarin 120

conversion efficiency: pumped by

Nd:YAG 532 nm, 10 kHz, 10ns, 90W

Nd:YAG 355 nm, 10 kHz, 10ns, 30W

 25% @ 564 nm, >22 W                          Rhodamine 6G

 25% @ 640 nm, >22 W                          DCM

 15% @ 440 nm, >6 W                            Coumarin 120

conversion efficiency  SHG

>15% @ 282nm, >3.5W                          with Boost option





conversion efficiency: pumped by

Nd:YAG 532 nm, 1 kHz, 150ns, 90W

25% @ 564 nm, >23 W                            Rhodamine 6G

  4% @ 282 nm, >1 W                              SHG





wavelength reproducibility

 < 0.005 nm

absolute accuracy

 <   0.01 nm

scan linearity

 < 0.002 nm

wavelength stability

 < 0.001 nm/°C

divergence

        0.5 mrad

polarisation

 >    98 %                                                     vertical

ASE-background

 <    0.5 %



dimensions                                                                               LIOPSTAR-HQ

LIOPSTAR-HQ

1040 mm x 400 mm x 300 mm ± 10 mm, 80 kg

beam input height

  180 mm ± 10 mm

beam output height

  200 mm ± 10 mm

requirements                                                                            LIOPSTAR-HQ

cooling for dye solvent

800 Watt, resonator & amplifier system

laboratory

dust-free air (flow box)

voltage

110…230V, single phase, 50 Hz/ 60 Hz

computer

single USB port

operating system

Windows XP/ Windows Vista/ Windows 7





pump laser pulse power, kHz operation

up to 150 Watt










































specification are subject to change without notice


Amplifier cell in Brewster angle

Due to the amplifier dye cell set up in Brewster angle, the reflections and the parasitic lasing are minimized.

This leads to an overall higher performance of the laser output.

·         Reducing of back reflections

·         Reducing of parasitic lasing

·         Reducing of ASE

·         Higher conversion efficiency

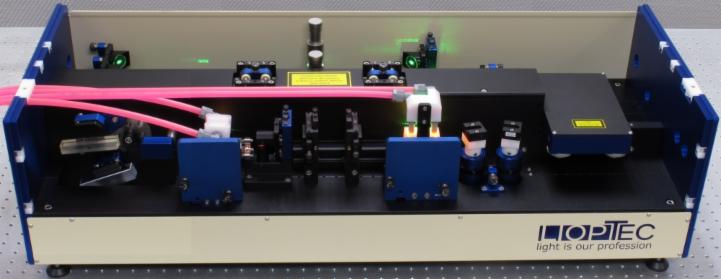

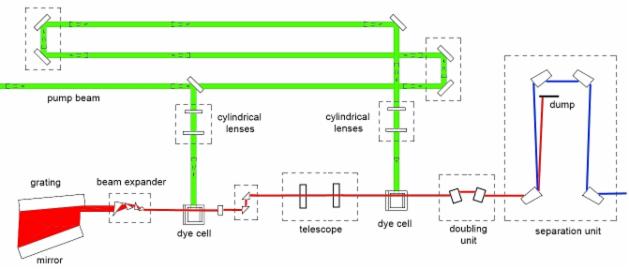

LiopStar-HQ

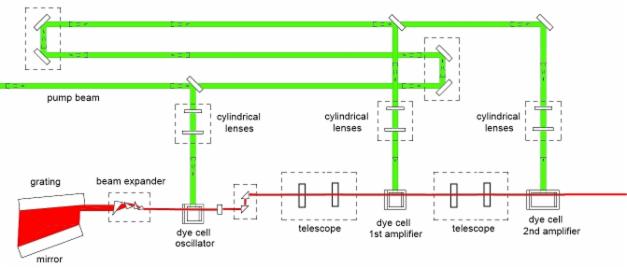

LiopStar-HQ with 3rd amplifier (rectangular cell or Bethune cell)
